| Brand Name: | Juneng Machinery |
| Model Number: | NCB 12/0.5 |
| MOQ: | قابل للتفاوض |
| السعر: | قابل للتفاوض |
| Delivery Time: | 60 يوم |

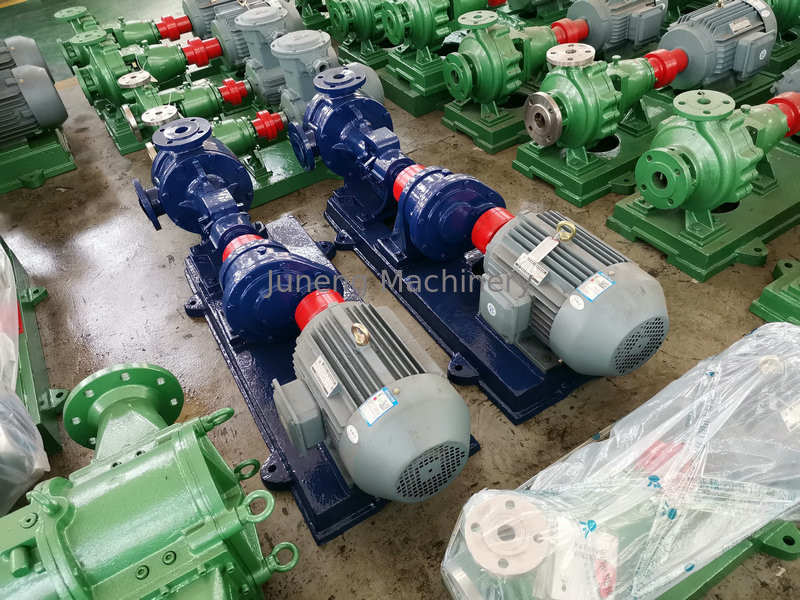

Environmental Protection Centrifugal Transfer Pump Belt Driven / Coupler Driven
Centrifugal Transfer Pump Introduction
High Pressure Centrifugal Horizontal self priming oil pump are used to deliver the petrol, kerosene, diesel and other petroleum product; and the temperature of medium is -20℃~+80℃. It is a kind of load and unload oil pump in boat. And High Pressure Centrifugal Horizontal self priming oil pump can be used to convey oil in the land oil depot and oil truck. In addition, the pump also can carry the sea water and fresh water.
Centrifugal Transfer Pump Specifications:
|
Model
|
Flow
m3/h
|
Pressure
Mpa
|
Motor Model
|
Motor Power
KW
|
Assembly style
|
Outline dimension
LxWxH (mm)
|
|
NCB1.2/0.3
|
1.2
|
0.3
|
Y90L-6
|
1.1
|
Belt driven
or
Coupler
driven
or gear box driven
|
234x140x140
|
|
NCB1.8/0.3
|
1.8
|
0.3
|
Y100L-6
|
1.5
|
254x153x153
|
|
|
NCB3/0.3
|
3
|
0.3
|
Y132S-8
|
2.2
|
254x153x153
|
|
|
NCB6/0.5
|
6
|
0.5
|
Y100L-4
|
3
|
700x420x323
|
|
|
NCB8/0.5
|
8
|
0.5
|
Y100L-4
|
3
|
700x420x323
|
|
|
NCB12/0.5
|
12
|
0.5
|
Y132M-4
|
4
|
800x550x420
|
|
|
NCB16/0.5
|
16
|
0.5
|
Y160M-6
|
5.5
|
800x550x420
|
|
|
NCB20/0.5
|
20
|
0.5
|
Y160L-6
|
7.5
|
800x550x420
|
|
|
NCB12/0.7
|
12
|
0.7
|
Y160M-4
|
7.5
|
990x780x510
|
|
|
NCB18/0.7
|
18
|
0.7
|
Y160L-6
|
11
|
990x780x510
|
|
|
NCB24/0.5
|
24
|
0.5
|
Y160M-4
|
11
|
990x780x510
|
|
|
NCB30/0.5
|
30
|
0.5
|
Y160L-4
|
15
|
990x780x510
|
|
|
NCB15/1.5
|
15
|
1.5
|
Y180L-6
|
15
|
1230x1009x740
|
|
|
NCB20/0.7
|
20
|
0.7
|
Y160L-6
|
11
|
1230x1009x740
|
|
|
NCB25/0.7
|
25
|
0.7
|
Y180L-6
|
15
|
1230x1009x740
|
|
|
NCB35/0.5
|
35
|
0.5
|
Y160L-4
|
15
|
1230x1009x740
|
|
|
NCB40/0.5
|
40
|
0.5
|
Y200L-6
|
18.5
|
1340x1022x650
|
|
|
NCB50/0.5
|
50
|
0.5
|
Y200L-6
|
18.5
|
1340x1022x650
|
|
|
NCB60/0.5
|
60
|
0.5
|
Y200-6
|
22
|
1340x1022x650
|
|
|
NCB70/0.5
|
70
|
0.5
|
Y225M-6
|
30
|
1340x1022x650
|
|
|
NCB80/0.5
|
80
|
0.5
|
Y250M-6
|
37
|
1590x1356x840
|
|
|
NCB100/0.5
|
100
|
0.5
|
Y280S-6
|
45
|
1590x1356x840
|
|
|
NCB120/0.5
|
120
|
0.5
|
Y280M-6
|
55
|
1590x1356x840
|
Centrifugal Transfer Pump Application:
It is applied to convey liquid from all kinds of light or volatility to deep sticky, even to half-solid. It is widely used in petroleum, chemistry, oil, paint etc.
Product competitive advantage:
The inner gearing principle is adopted for this pump. The annular and external gear pitch circles closely lean against one side, the other side is separated by covering with “ crescent plate” .
The annular gear driver the external gear for the same direction rotation. It has the advanced structure, fine quality, small volume, large flow, low noise, durable service life.
