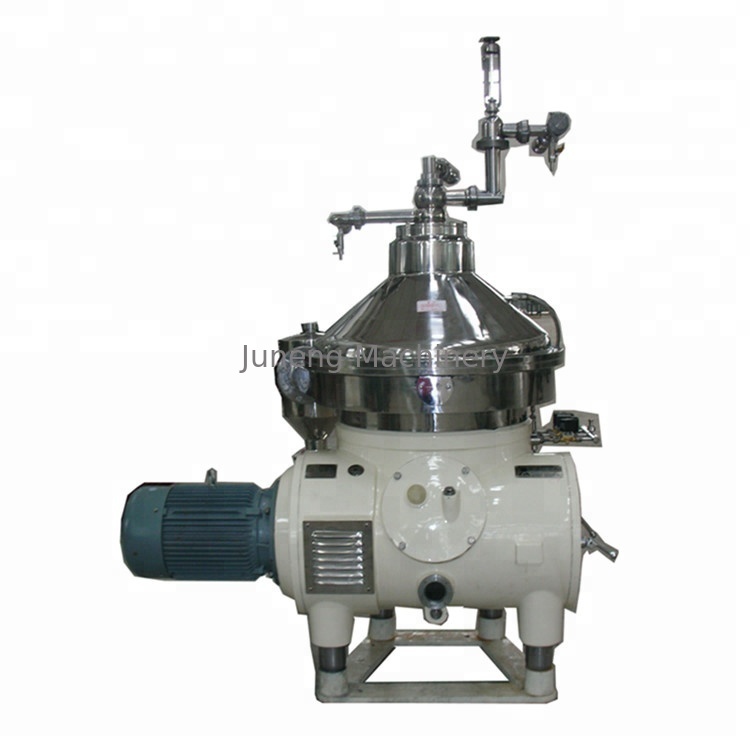

Industrial Milk Cream Separator 5000-10000L/H 15KW 380V
| مكان المنشأ | جيانغسو ، الصين |
|---|---|
| اسم العلامة التجارية | Juneng |
| إصدار الشهادات | CE Certificate |
| الحد الأدنى لكمية | 1 |
| الأسعار | $32,000-32,899 |
اتصل بي للحصول على عينات مجانية وكوبونات.
ال WhatsApp:0086 18588475571
WeChat: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.
xتفاصيل المنتج
| الجهد االكهربى | 380V/50Hz | قوة | 15 كيلوواط |
|---|---|---|---|
| وزن | 1600 كجم | أبعاد | 1800*1200*1750 مم |
| مادة | SUS304/SUS316 | سعة | 5000-10000L/ساعة |
| المكونات الأساسية | PLC ، تحمل ، محرك | ضغط مدخل | 0.05 ميجا باسكال |
| ضغط المخرج | 0.1-0.4 ميجا باسكال | قوة المحرك | 15 كيلوواط |
| سرعة الدوران | عالي | مستوى الضوضاء | أدنى |
| استقرار التشغيل | مستقر | نظام الختم | مختومة تماما |
| كفاءة الفصل | ممتاز | ||
| إبراز | Industrial milk cream separator 15KW,High-capacity milk separator 10000L/H,380V milk cream separator machine,High-capacity milk separator 10000L/H,380V milk cream separator machine |
||
منتوج وصف
Milk Factory Use Skimming Separator Fresh Cream Machine
Product Application
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing destructive air entry and maintaining product quality.
Milk products vary widely in composition, with even basic market milk containing different fat contents. The separator processes diverse dairy products including butter, cheese, quark, and yogurt.
Main Features
- High rotating speed
- Operating stability
- Completely sealed inlet and outlet system
- Lower noise operation
- Perfect separation efficiency
Technical Specifications
| Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
|---|---|---|---|---|---|---|
| DHN360 | 2000-5000 | 0.05 | 0.1-0.35 | 7.5 | 1200 | 1530*1150*1500 |
| DHN470 | 5000-10000 | 0.05 | 0.1-0.4 | 15 | 1600 | 1800*1200*1750 |
| DHN550 | 10000-20000 | 0.05 | 0.1-0.4 | 22 | 2300 | 1950*1550*1960 |
| DHN616 | 25000-35000 | 0.1 | 0.3 | 37 | 3000 | 2185*1728*2082 |
Machine Components
Name: Drum
Brand: Juneng
Origin: China
The drum is the high-speed rotating component that performs material separation, serving as the heart of the separator. It receives power through precise taper fitting with the vertical shaft. Each numbered drum component must remain in its original configuration to maintain balance and safety.
Name: Shaft
Brand: Juneng
Origin: China
The vertical shaft transmits power through a speed step-up gear and high-speed rotating components. Its elastic bearing support allows precise height adjustment for optimal operation positioning between drum, centripetal pump, and water-inlet housing.
Service Support
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing opportunities
After-Sales Service
- Machine installation and operation training
- Overseas engineer support for machinery service
Packaging & Delivery
| Packaging | Details |
|---|---|
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
Standard packaging uses wooden boxes (Size: L*W*H). European shipments include fumigated wooden boxes. For tight container fits, we offer PE film packaging or custom solutions per customer request.
